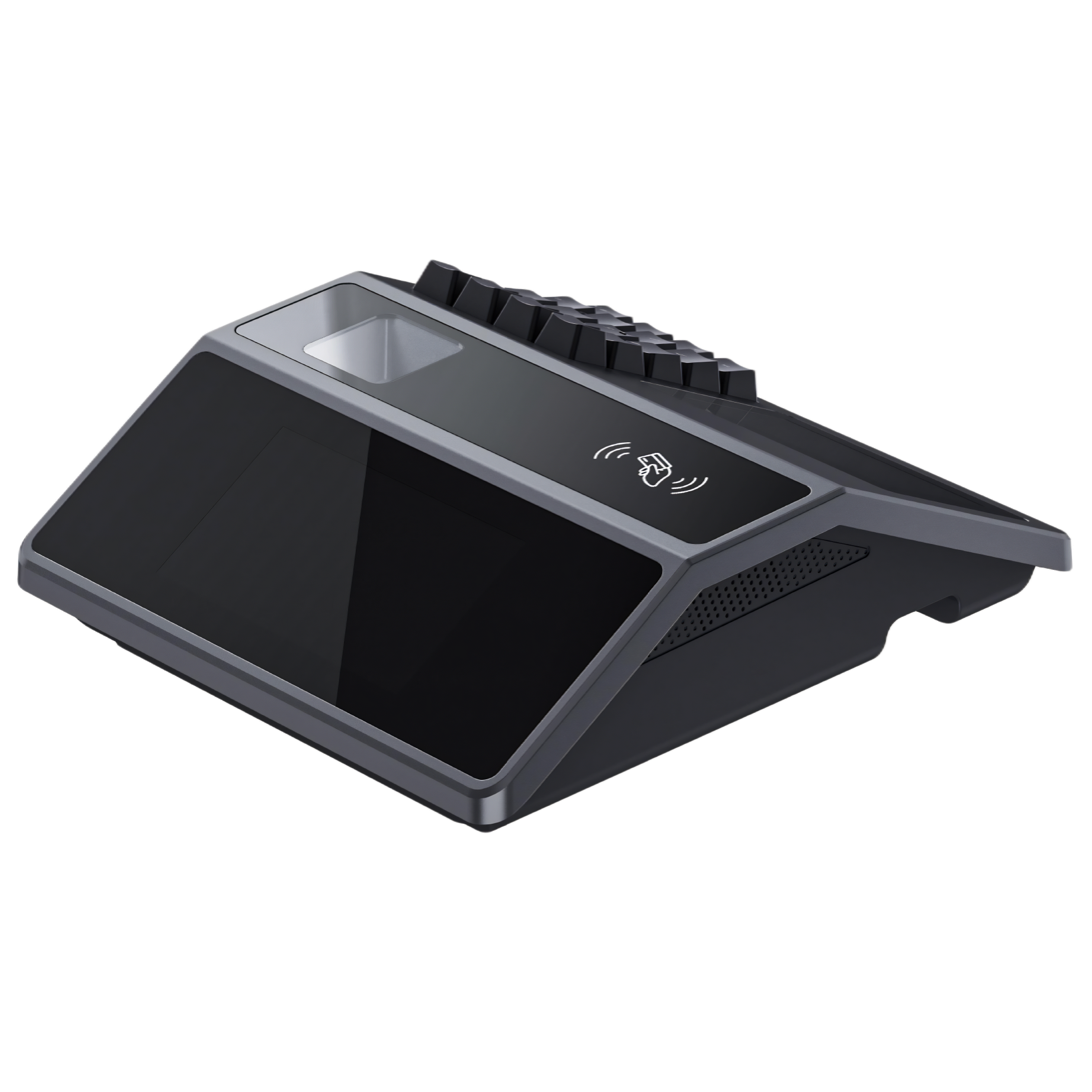

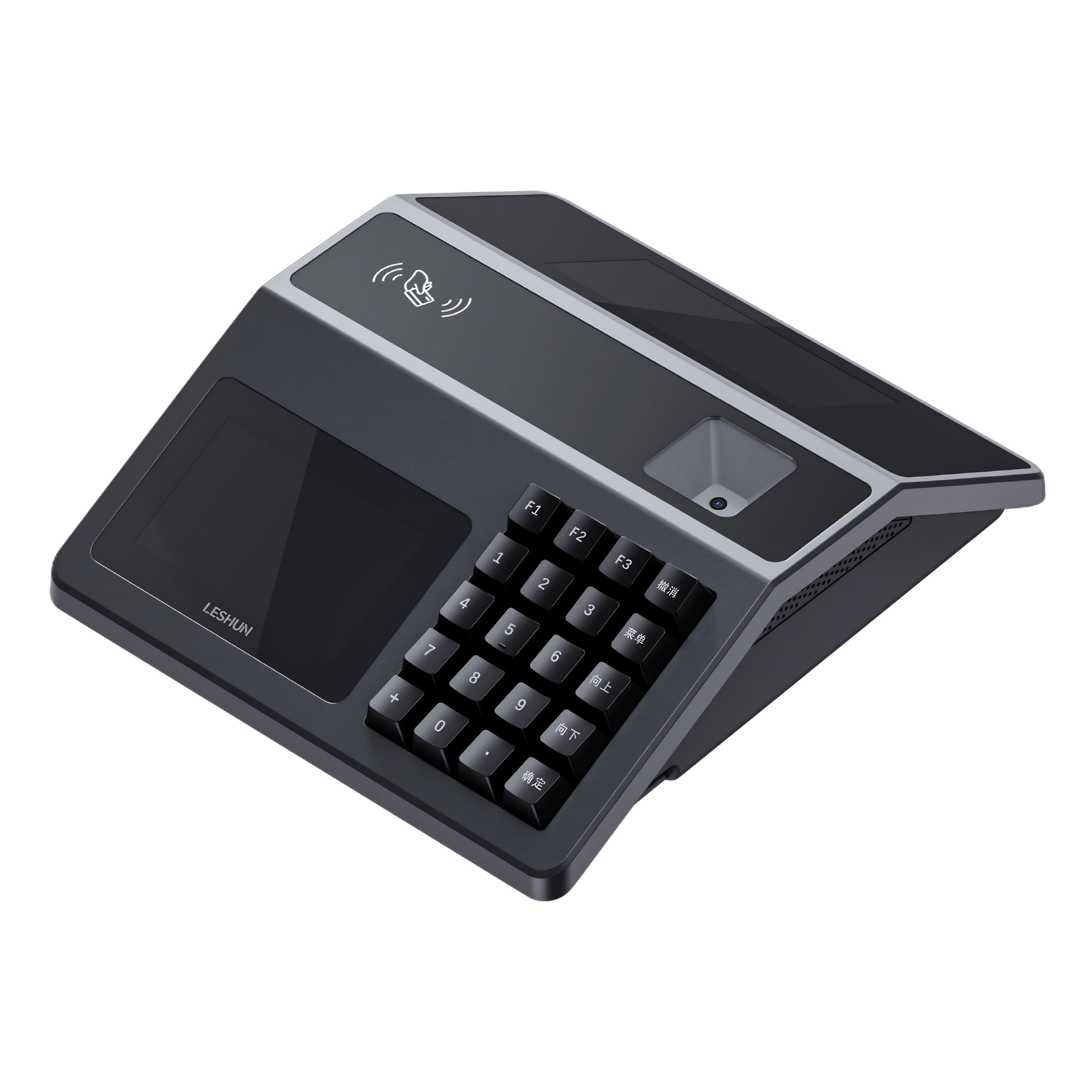

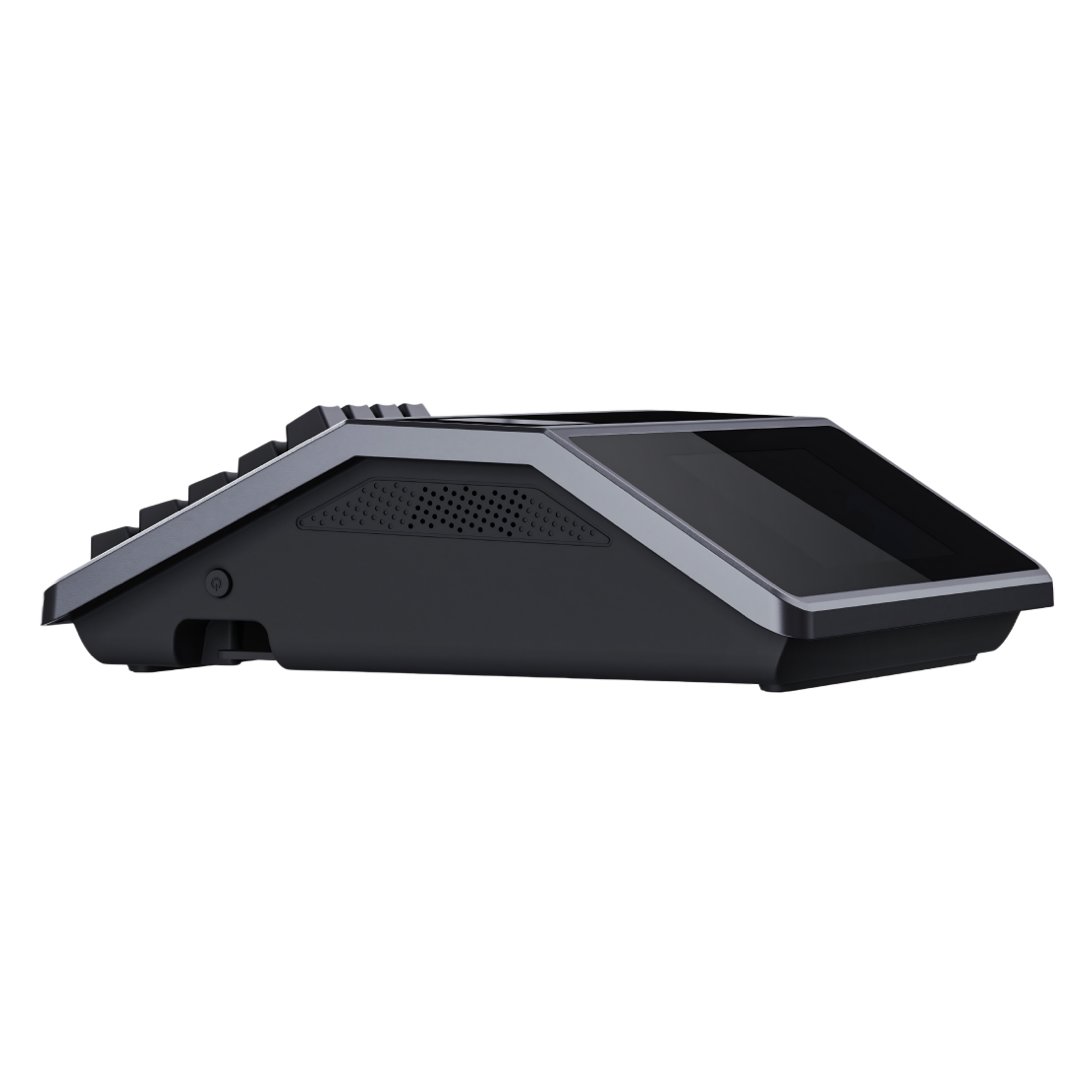

LSF560 Smart Canteen Terminal product image
Smart Canteen Terminal
LESHUN LSF560
Reliable hardware supports card / QR code payment

Multimodal Payment

HD Color Dual Screen
HD Color Dual Screen
Card Recognition
Card Recognition
QR Code Recognition
QR Code Recognition
Built-in Mechanical Keyboard
Built-in Mechanical Keyboard
Dual HD Screens

Dual HD Screens

5-inch customer display4-inch operation screen

Suitable for canteens of universities, government enterprises and public institutions.

4-inch
Operation Display
5-inch
Touch Customer Display
Horizontal Design, Installation-Free

Horizontal Design, Installation-Free

Network-connected, ready for use upon power-on

254 mm
Length
221 mm
Width
79 mm
Height
Outstanding Performance, Robust Configuration

Outstanding Performance
Robust Configuration

RK3566 4-core
CPU
1.8GHz
Max Clock Speed
2GB RAM + 16GB ROM
Memory & Storage

High-performance processor paired with 2GB RAM + 16GB ROM, ensuring smooth and high-speed operation

Dual-scan All-in-One, Flexible Payment

QR Code Payment
QR Code Payment
Card Swipe Payment
Card Swipe Payment
Built-in 20-key mechanical keypad

Built-in 20-key
mechanical keypad

IP55 waterproof, insect & oil resistant, 5+ million keystroke lifespan

Mechanical Numeric Keypad

Ethernet + Dual-band WiFi

Ethernet and Dual-band WiFi

Stable transmission, strong anti-interference capability, fast data transfer, enhanced security, and smoother product performance

LESHUN LSF560 Specification Sheet

LSF560
OS
Android 11
CPU
4-core 1.8GHz Cortex-A55 CPU, RK3566 Platform
Memory
2GB RAM + 16GB ROM
Display
Operation Screen: 4-inch, Resolution: 800*480
Customer display: 5-inch, Resolution: 480*854
5" IPS Multi-touch screen
Size & Weight
254mm*221mm*79mm
0.92kg
Rated Power
12W
Bluetooth
BT4.2(BR/EDR+BLE)
Power
12VDC/3A
Mechanical Keyboard
20-key
Scanner Module
Recognition distance: 30-150mm; Supports 1D & 2D barcodes
NFC
Card reading distance: >3cm for M1 cards, >1cm for CPU cards
Wi-Fi
2.4G/5G
802.11a/b/g/n/ac
Ethernet
10/100 Mbps base-T auto-negotiation; RJ45 port
Operating Environment
Max Temp: -10°C~+50°C, Humidity: 10%~85%
Recommended Temp: -10°C~+40°C, Recommended Humidity: 10%~80%
Audio
Speaker qty: 1
4R 3W
Interface
1×USB2.0, Type-A Port
1*RJ45

Support & Downloads

Specification Sheet
ZIP(500KB)
